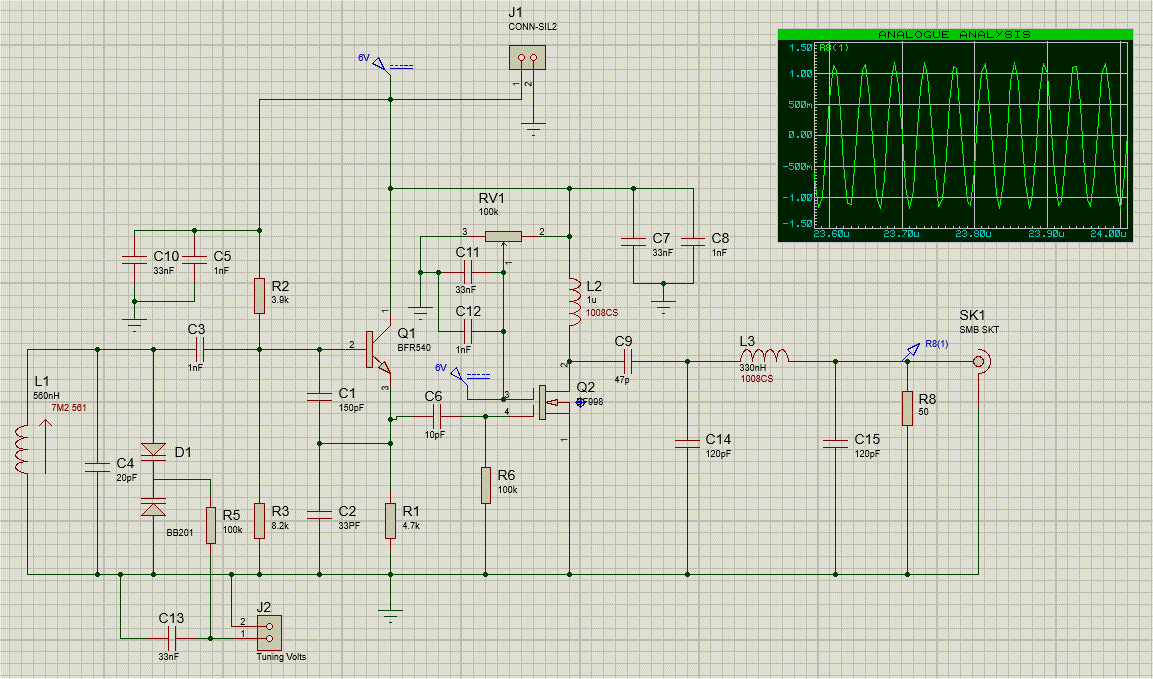

25MHz VCO

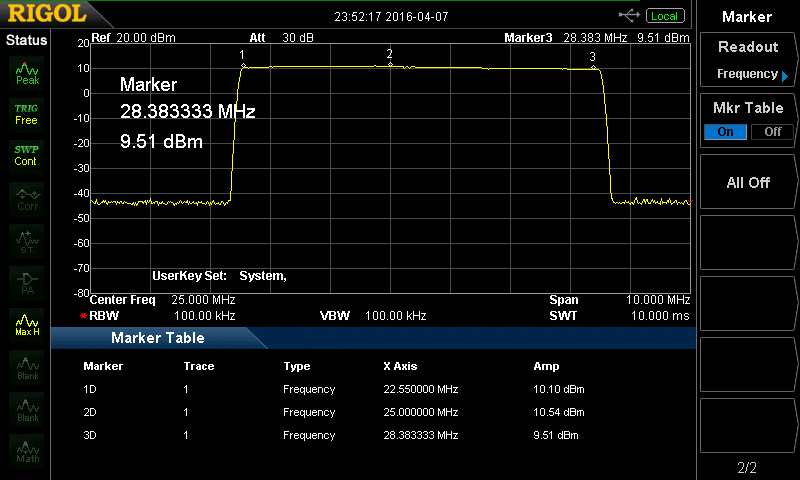

VCO Power Flatness

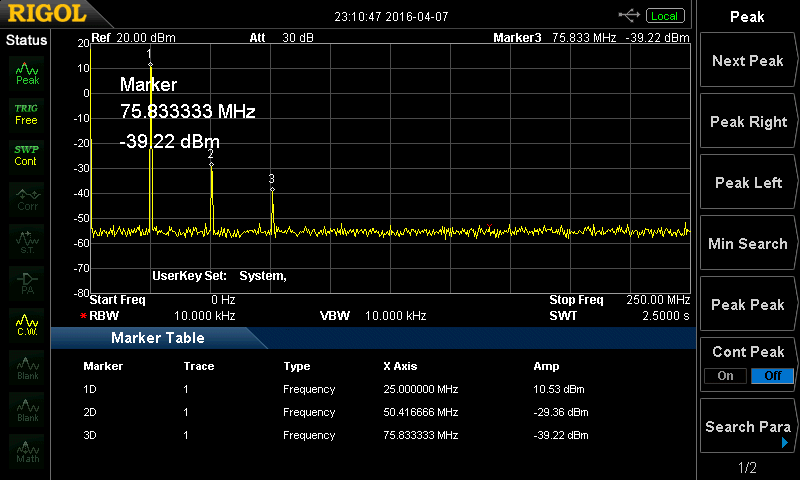

VCO Spectrum

Tuning Range & Power Flatness

22.55MHz @ 1V
28.38MHz @ 5V
Tuning sensitivity 1.57MHz/V
Power 10dBm @ 6V into 50ohm

Harmonic content

Milled Prototype PCB

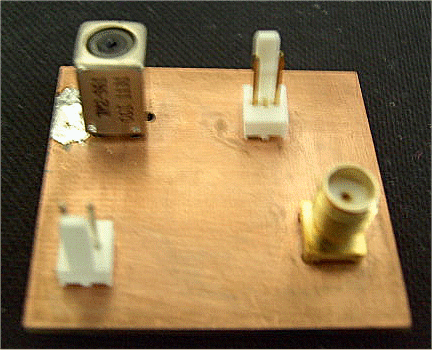

RX VC PCB Top

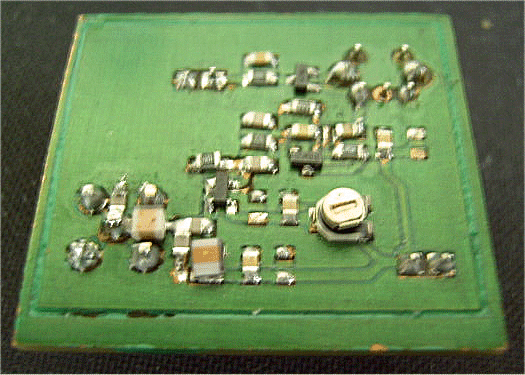

RX VC PCB Bottom
